One family of hardware, managed from one console: SD-WAN edge appliances, a Layer 3 PoE+ switch, Wi-Fi 7 access points, AI cameras and access control. Every device is provisioned zero-touch and inherits the same policy.

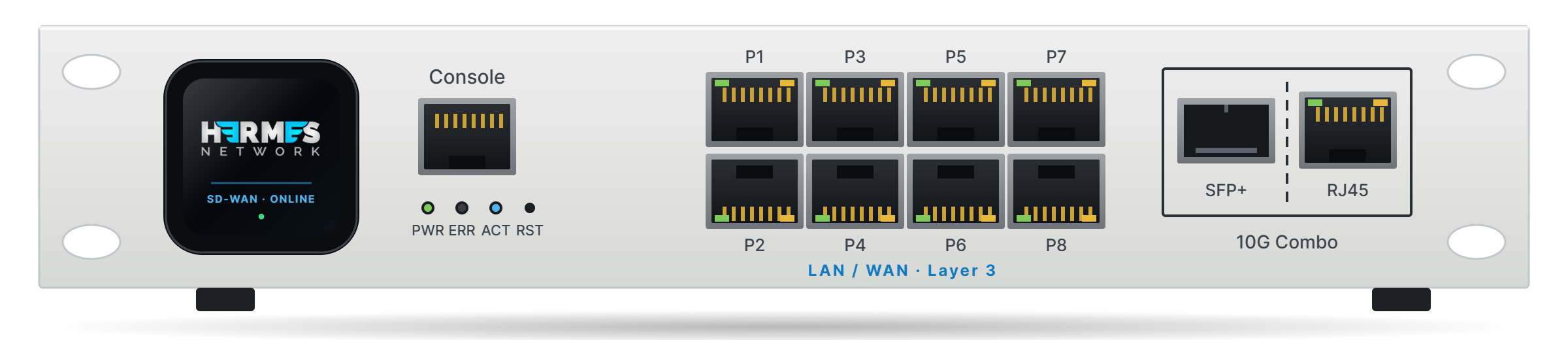

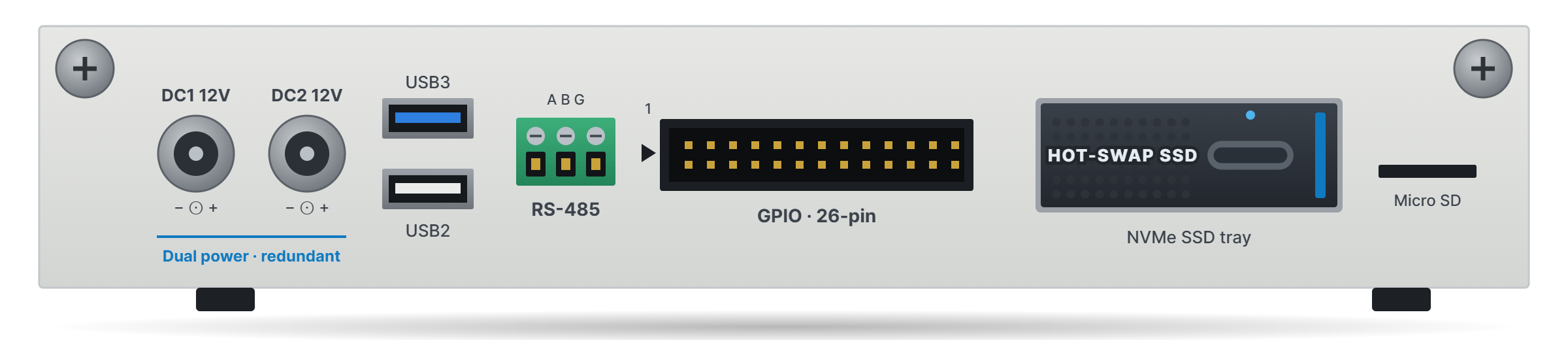

A compact branch appliance that routes, secures and switches the site: AI-driven SD-WAN, Layer 3 switching, next-gen security and edge AI on a quad-core 10G platform. Desktop, wall or half-width rack.
| Processor | MediaTek Filogic 880, 4 × Cortex-A73 1.8 GHz, 8 GB DDR4 |
|---|---|
| Network | 8 × RJ45 (Layer 3) · 10G combo SFP+ / RJ45 |
| Display | 1.3″ AMOLED status display |
| Storage | Hot-swap NVMe SSD · 8 GB eMMC · micro SD |
| Industrial I/O | RS-485 (surge-protected) · 26-pin GPIO with 3 ADC |
| Power | Dual 12 V DC inputs, redundant |
| Size | 210 × 135 × 40 mm · half-width 1U |

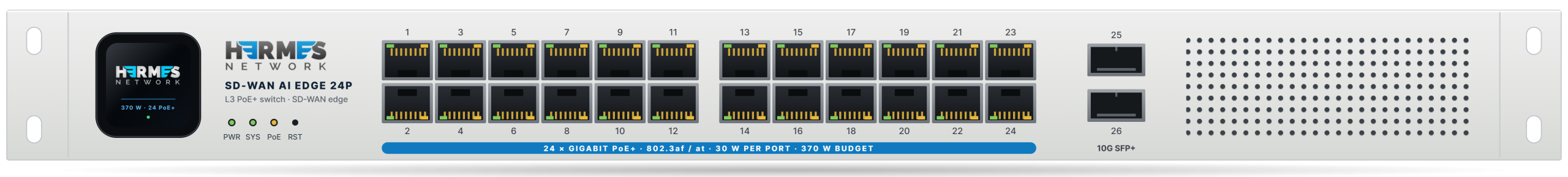

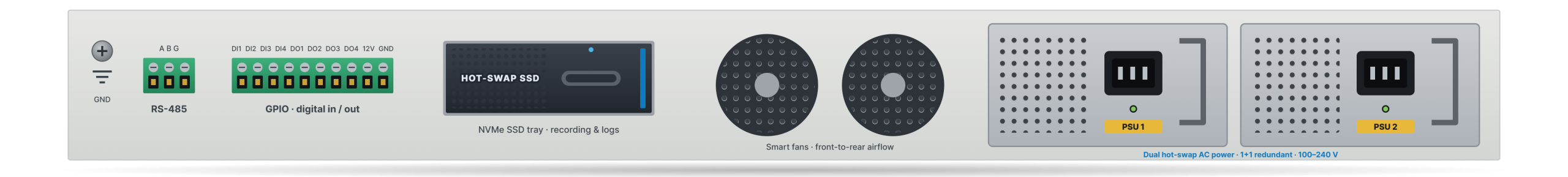

A Layer 3 PoE+ switch and a powerful SD-WAN edge in one SKU. 24-port PoE ready: it powers every AP, camera, phone and door station on site, while the SD-WAN, security and AI engine connects and protects it.
| Switching | 24 × GbE PoE+ · 2 × 1/10G SFP+ · 88 Gbps |
|---|---|
| PoE | 802.3af / at, 30 W per port, 370 W total |
| Layer 3 | Inter-VLAN routing, static routes, DHCP server / relay, ACLs |
| SD-WAN & AI | SD-WAN, NGFW, IDS / IPS and edge AI on a quad-core Arm, 8 GB |
| Display | 1.3″ AMOLED touch display |
| Power | 2 × hot-swap AC PSU, 1+1 redundant |
| Size | 440 × 230 × 44 mm · 19″ 1U |

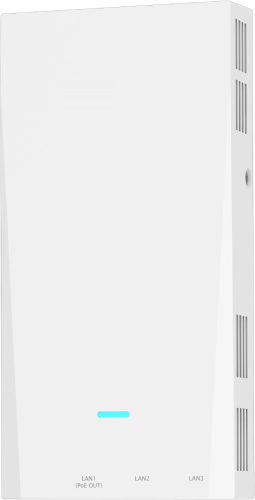

Two Wi-Fi 7 APs that pair plug-and-play with every Hermes SD-WAN model: a 2×2 wall-mount AP that also stands on a desk, and a tri-band ceiling AP for busy spaces.
| Wall / desktop | Dual band 2×2 + 2×2, 688 + 4,323 Mbps |
|---|---|
| Ports | 2.5G PoE uplink · 3 × 2.5G LAN, PoE out on LAN1 |
| Mounting | Over the socket, wall, desktop stand |

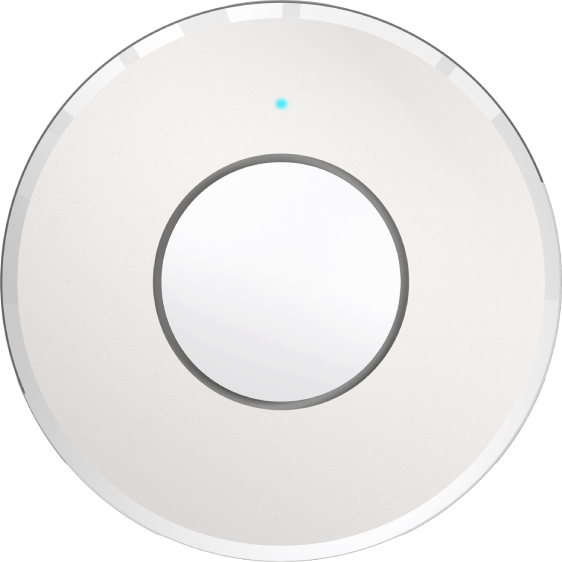

| Ceiling | Tri band 2×2 × 3, 688 + 4,323 + 5,764 Mbps |
| Ports / power | 10G RJ45 uplink · 802.3at PoE+ or 12 V DC |
| Mounting | Ceiling or T-bar, bracket included |

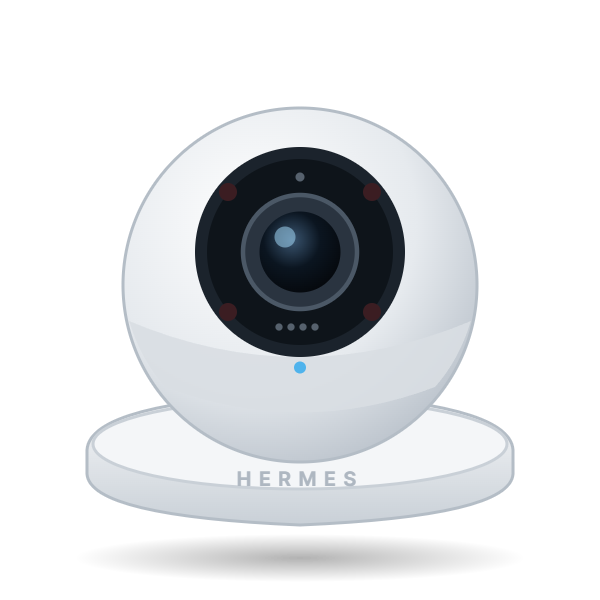

A Hermes-branded PoE IP camera with a built-in speaker and microphone amplifier module, analysed by SecureCore AI on the Hermes edge it plugs into. Events and clips go to the cloud, not raw footage.
Preview · full specifications coming soon
| Form factor | Indoor turret (more models to follow) |
|---|---|
| Power | PoE, IEEE 802.3af / at |
| Audio | Built-in speaker and microphone, amplifier module |
| Video | H.265 / H.264 · ONVIF · RTSP |
| Analytics | SecureCore AI on the Hermes SD-WAN edge |
| Resolution, lens, IR | To be announced |

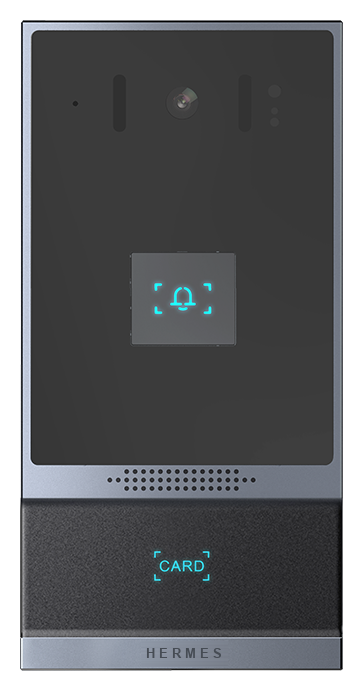

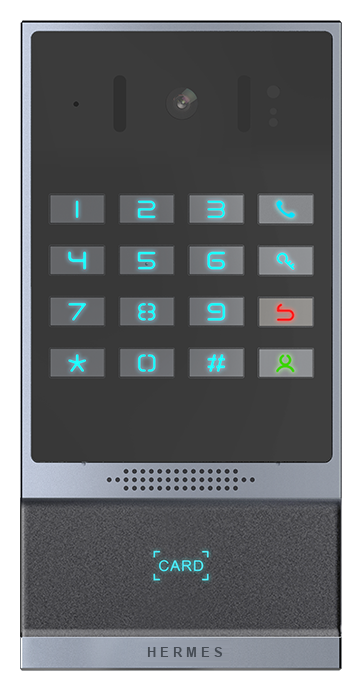

Door stations that open the door for the right people and show you who is there. Two styles: a video door phone with a call button, and a keypad station for PIN entry. Both read cards and key fobs.
| Camera | 2 MP, 1080p 30 fps, 120° H · IR, 0.1 lux |
|---|---|
| Access | Card / fob (10,000 cards), remote, exit button; PIN on keypad model |
| Voice | SIP, 2 lines, full-duplex HD audio |
| Door I/O | 2 relays · 3 inputs (door sensor, exit button) · Wiegand |
| Integrations | ONVIF Profile S · RTSP · HTTP API |
| Power | PoE 802.3af or 12 V DC |
| Rating / size | IP66 / IK07 · 177 × 88 × 36 mm |

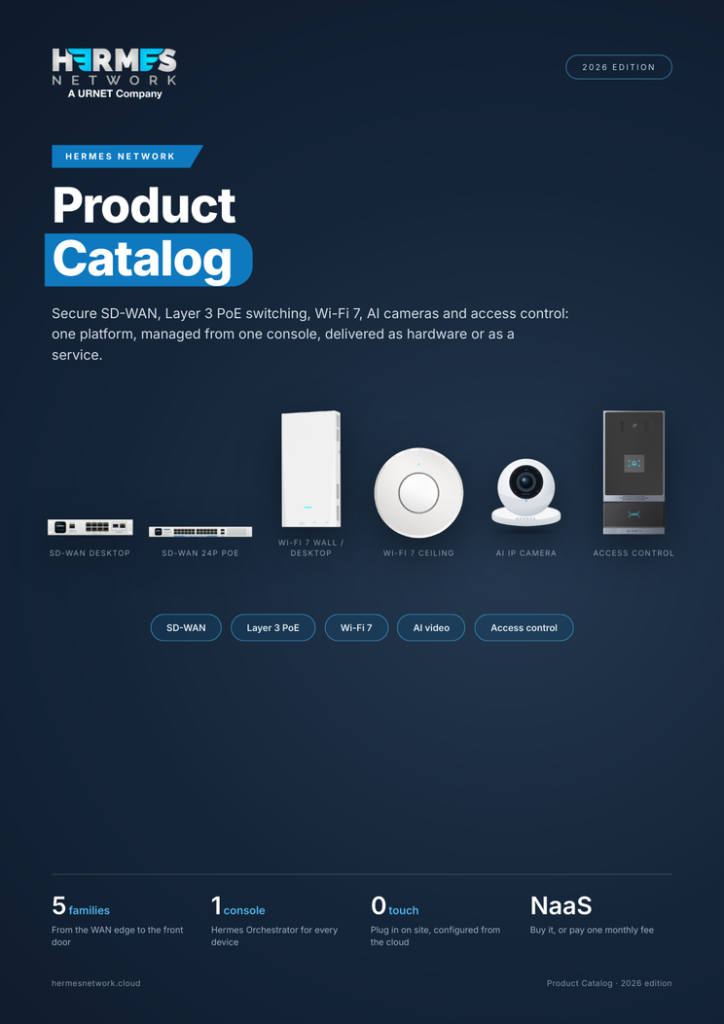

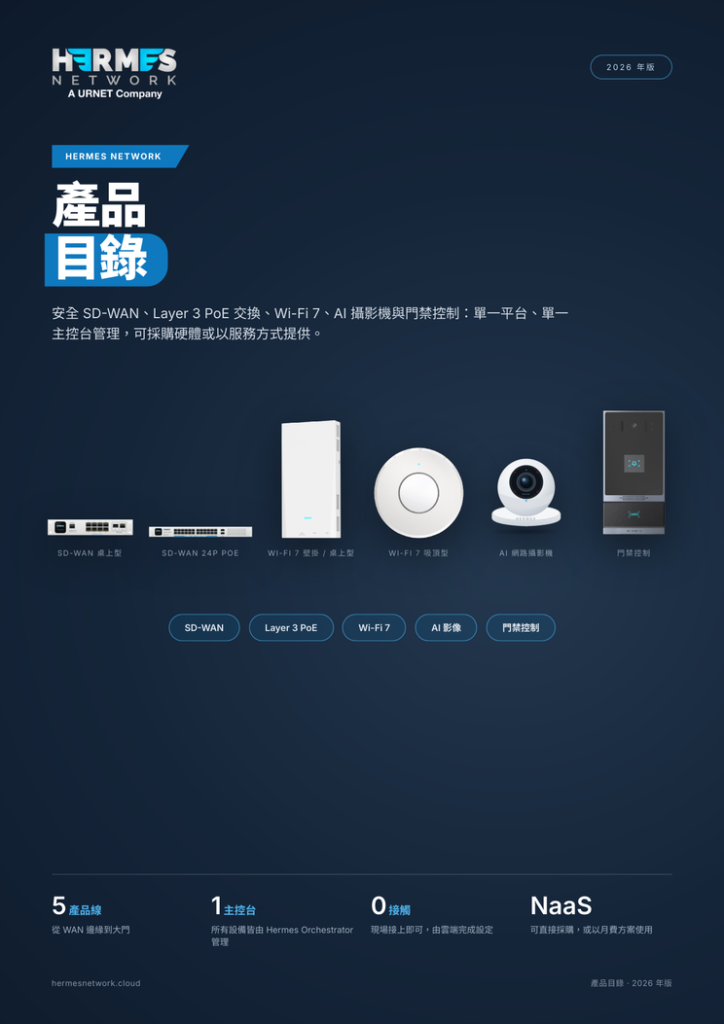

Full product brochures with detailed specifications, and the complete catalog in English and Traditional Chinese.
Branch SD-WAN, Layer 3, edge AI, dual power and industrial I/O. 7 pages.
Layer 3 PoE+ switch and SD-WAN edge in one SKU: 24 PoE+ ports, 370 W. 6 pages.

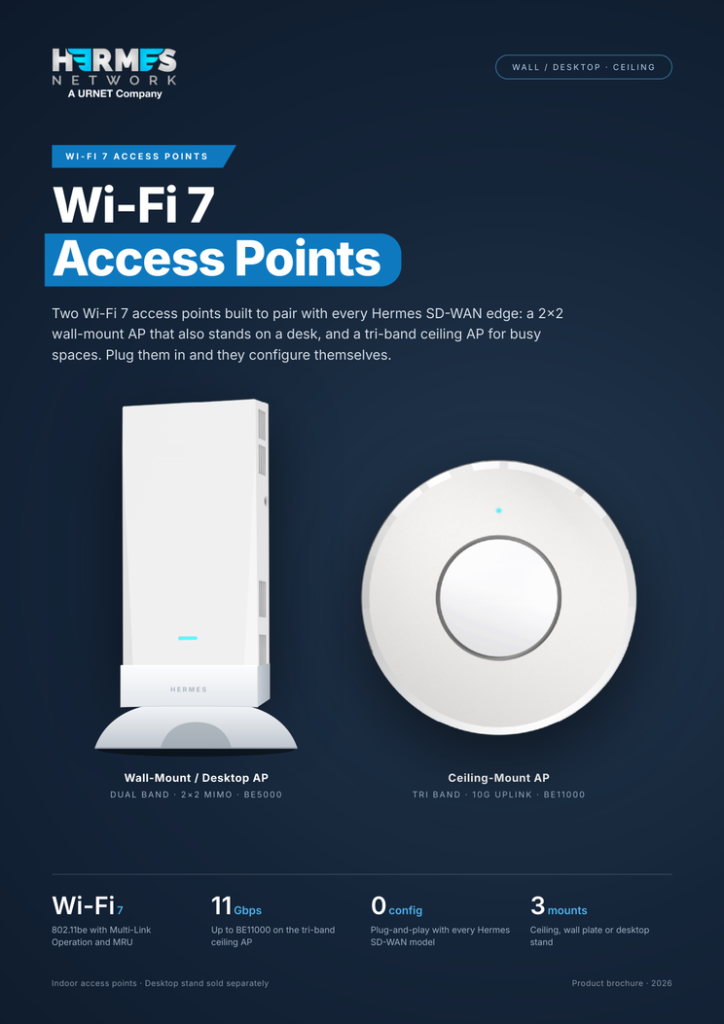

Wall / desktop and ceiling APs, SD-WAN pairing and mounting guidance. 7 pages.
Every Hermes product on one page each: SD-WAN, switching, Wi-Fi 7, cameras, access control. 8 pages.
